船用乾式変圧器II

船用乾式変圧器

Marine transformer onebank of three transformer

Fig.1 connection diagram shows△-△
Connection transformer group（No.1,No.2,No.3）in case of disorder of one transformer by damage,disconnect
short bars of U.V.u.v.bars of the damaged transformer. then as shown in Fig.2 connection diagram transformer
can be used as V-V connection group.

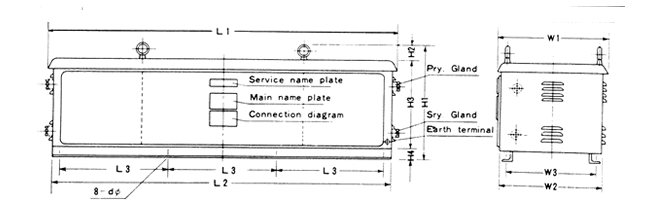

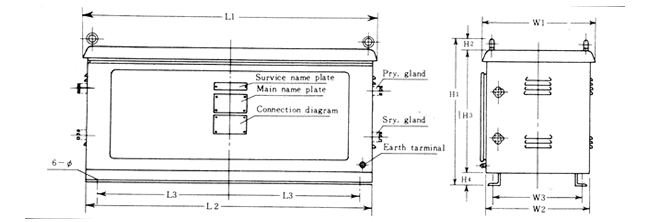

屋内用標準ケース　寸法表

<
型式
Type		 容量KVA
Capacity
(KVA)		 W1 W2 W3 L1 L2 L3 H1 H2 H3 H4 d 重量( Kg)
Weight
(kg)
SK-9K 3×3                      125
SK-15K 35×3 390 350 300 940 900 400 480 50 380 50 16 170
SK-22.5K 7.5×3 390 350 300 940 900 400 480 50 380 50 15 200
SK-30K 10×3 420 380 330 1080 1040 470 520 50 420 50 15 250
SK-45K 15×3 480 440 380 1240 1200 550 640 60 530 50 19 345
SK-60K 20×3 430
SK-75K 25×3 550 500 440 1400 1350 600 710 80 580 50 19 500
SK-90K 30×3 550 500 440 1400 1350 600 710 80 580 50 19 550
SK-105K 35×3 550 500 440 1400 1350 600 710 80 580 50 19 590
SK-120K 40×3 580 530 460 1450 1400 620 740 80 600 60 19 720
SK-135K 45×3 740
SK-150K 50×3 620 670 500 1500 1450 650 770 80 630 60 19 910
SK-180K 60×3 720 670 540 1800 1750 800 900 90 750 60 19 1140
SK-225K 75×3 720 670 540 180 1780 800 900 90 750 60 19 1200
SK-240K 80×3 1320
SK-270K 90×3 750 700 640 1950 1900 850 970 90 820 60 19 1600
SK-300K 100×3 1700
SK-360K 120×3 840 790 730 2050 2000 900 1000 90 850 60 19 1900
SK-450K 150×3 890 840 780 2350 2300 950 1050 90 900 60 19 2000

Fig.1 connection diagram shows△-△
Connection transformer group(No1,No2,No3)in case of disorder of one transformer by damage,disconnect
short bars of vu.v.U.V.of the damaged transformer,then spare transformer shall be connected to the same
phase of the damaged transformer then as shown in Fig.2 connection diagram transformer can be used
as △-△ connection group.

規格に応じ試験を行います。
